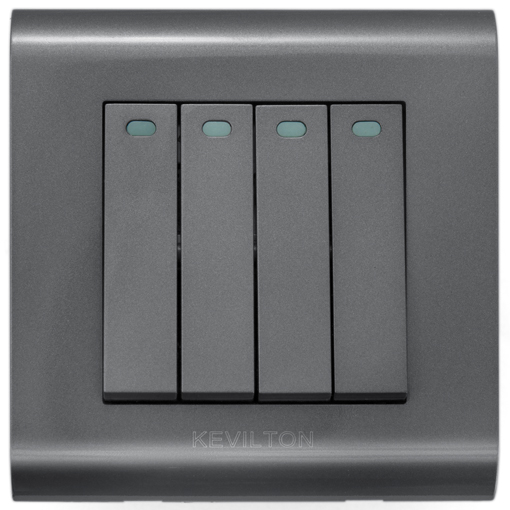

Integral rocker switch design with green indicators on switch caps.
Internally looped terminals in multiple gangs to save installation time & cost.
Embossed terminal markings on the rear housing ensure terminal identification that saves time.
Internal contact points covered with silver coating enhances the electric strength of the switch.
The front plate and back housing made from polycarbonate is of high impact strength and has fire retardant properties.
Easy removal of dolly cap and frame.
Alignment tolerance of mounting screw holes
Elegant colours to select, colour combinations possible for outer frames
Power Supply:
Plate Size: 250V AC
Rated Current : 10A
Dimensions:
Steel Plate Size (H*W): 85mm x 84mm
Front Frame Size (H*W): 88mm x 86mm
Terminal Space Capacity: 2 x 1.5mm2
Depth: 24mm
Mounting Centers: 60.3mm
Compatible Sunk Box: Standard Sunk Box (Depth – 35mm)
